Calcium Silicate Ceiling Tiles



Size

Thickness(mm) Width(mm) Length(mm) Weight(kg/pcs)
5/6 595/603 595/603 3.50

Parameters

Deviation in thickness: ±0.5mm Density Density: 1100—1300kg/m3
Bending strength: ≥ 12MPa(EMC) Modulus of Elasticity: 7100±500MPa(Wet)
Moisture content: ≤ 10% Wet expansion: ≤ 0.2%
Thermal Conductivity: ≤ 0.3W/(m.K) Frost Resistance: -30 Celsius
Temperature resistance ±120 Celsius Incombustibility A grade fireproof


The raw material of Sanle calcium silicate board are high-purity quartz flour, high grade portland cement,high-purity slaked lime, plant fiber and other mineral added substance. Sanle calcium silicate board is for indoor partition and ceiling of mositure proof and fireproof in the wet area building for both civil and industry application.So Calcium silicate board whose main component is just this kind of crystalloid, has good fire retardancy, water resistance, high strength,durability and so on.

Features

1. 100% Asbestos Free
2. Fire Resistance and Moisture Resistance
3. High Strength and Good Stability
4. Anti Fungus and Antiseptic
5. Widely used in Partition and Suspension System.
6. Easy working
7. Anticorrosive

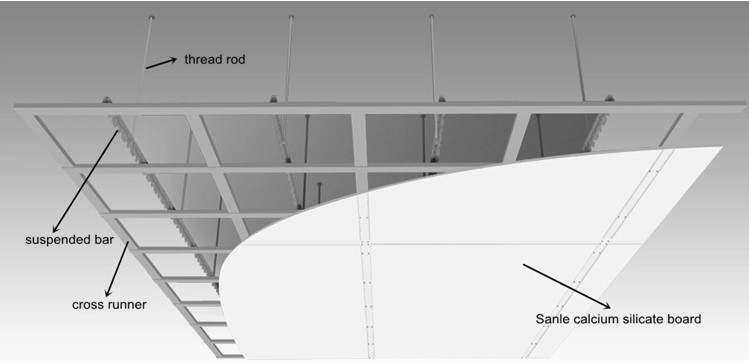

Ceiling Installation Method

1.Carry out ceiling line-measuring to determine the ceiling’s fixed position, the boom’s central range is generally 1200.
2.Connect and fix the boom and main keel with hanging piece to make the main keel keep level position.
3.Vertically fix the sub-keel to the main keel with hanging piece; the sub-keel axis’central range is 612mm.
4.Install the laterally supporting keel properly, its central ranges is 1224mm.
5.Fix the board on sub-keels with tapping screws, and to well the seam-connecting treatment.

Notice:

The hanging system of Sanle board combined with light steel keel is divided into two kinds of person-standing type and non person-standing type; for the non person-standing type,only consider the self-weight of ceiling and light.Lamp without loading other loads; for the person-standing type. Consider about 80~100kg load when someone repaired it.

Calcium Silicate Ceiling

calcium silicate ceiling
