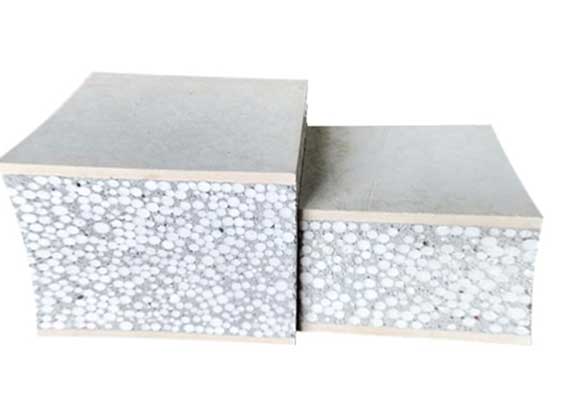

eps cement sandwich panel | EPS Sandwich Panel



Size

Thickness(mm) Width(mm) Length(mm)
50,75,100,125,150 610 2440

Parameters

Deviation in thickness: ±0.5mm Density Density: 1100—1300kg/m3
Bending strength: ≥ 12MPa(EMC) Modulus of Elasticity: 7100±500MPa(Wet)
Moisture content: ≤ 10% Wet expansion: ≤ 0.2%
Thermal Conductivity: ≤ 0.3W/(m.K) Frost Resistance: -30 Celsius

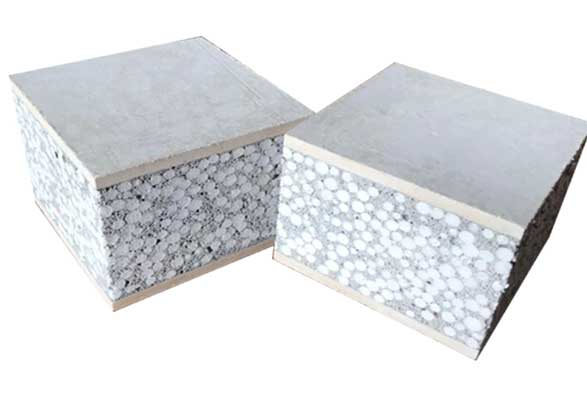

EPS Cement Sandwich Panel is a kind of lightweight energy saving wall material.Sanle composite wallboard is a new type of wall materials. The wallboard is composed of two panels of fiber cement board or calcium silicate board and polyphenyl granular concrete filled in the middle.Its panel is a kind of cement product with high strength, high temperature resistance, water proof, impact resistance and other characteristic.

Features

1.Good seismic performance

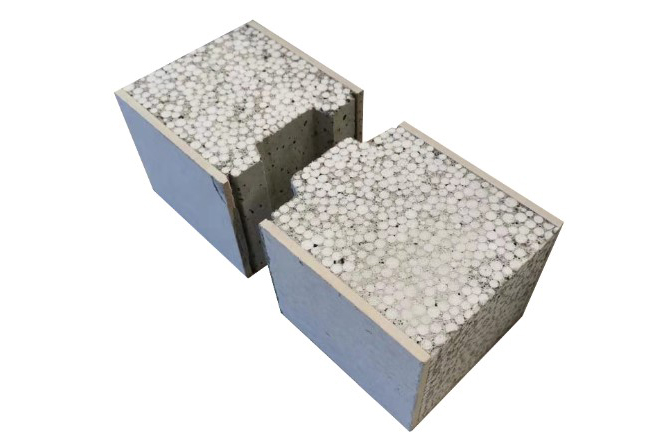

As a fabricated wall, it is built in three-in-one structure, and the board is embedded in the mortise and tenon. Its impact resistance and bending resistance are two times higher than those of brick wall.
2.Reusable
Sanle EPS can be used repeatedly for the interior partitions with wonderful changes, such as shopping malls and office buildings. Demolition is very simple and fast, can greatly improve product utilization and economic benefits, will not cause contrution waste.
3. Improve use space and light weight.
Using sanle EPS wallboard as interior partition material can save 4% of the practical space compared with traditional brick wall, and it also has all the function of traditional brick wall.
4. Fireproof, environmental friendly.
The green building materials certified by the state environmental protection administration are polluion-free in raw materials and production process. The wall board material is 100% free of harmful substances and radiation A products. It meets the national standard(GB6566-2001) and has no restrictions on its use.

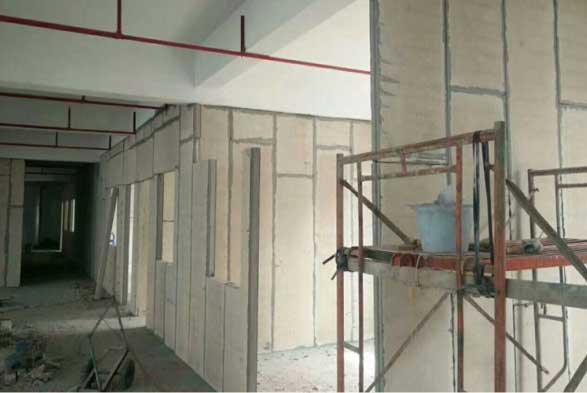

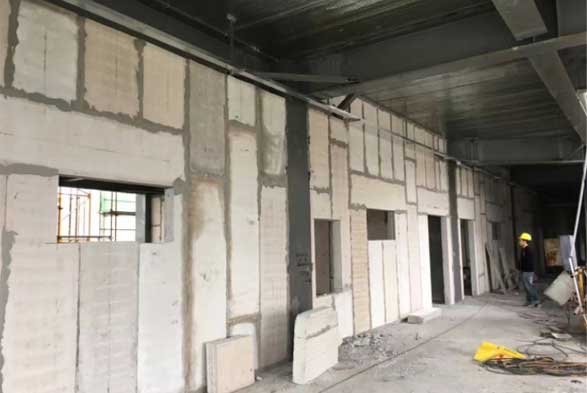

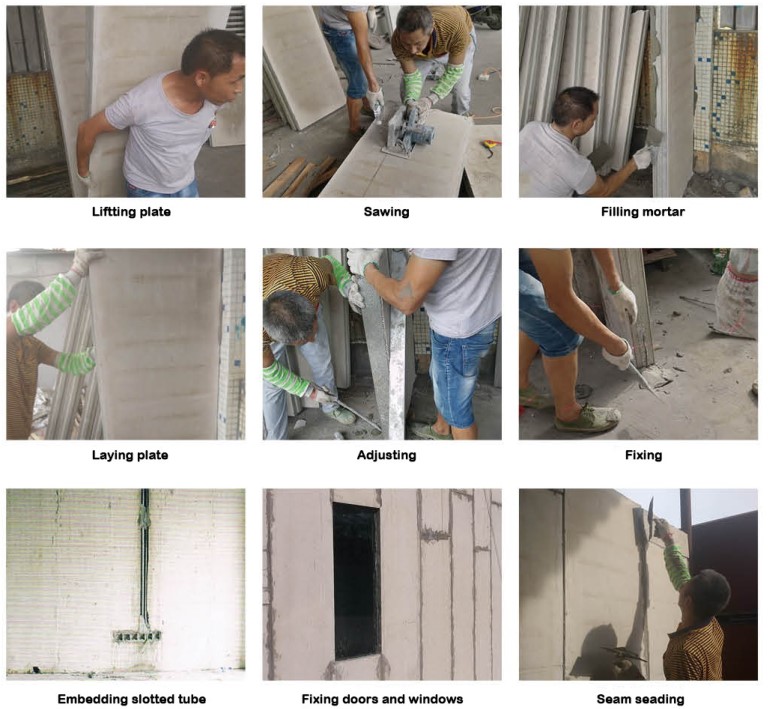

Installation

eps cement sandwich panel
