fiber cement board for exterior wall | Colorful Exterior Brick Cement Board

Contact Us Send Inquiry Download

Size

Thickness(mm) Width(mm) Length(mm)
6，8，10，12 603 1220

Parameters

Deviation in width (≤1220mm) ±3mm Deviation in length(≤2440mm) ±4mm
Deviation in thickness: ±0.3mm Density Density: 1.5-1.6g/cm3
Bending strength(Parallel): Average 15 MPa Thermal conductivity: ≤0.29 W/(m.k)
Water contain: ≤ 25% Moisture movement: ≤ 0.25%
Non-combustibility: GB8624 class A

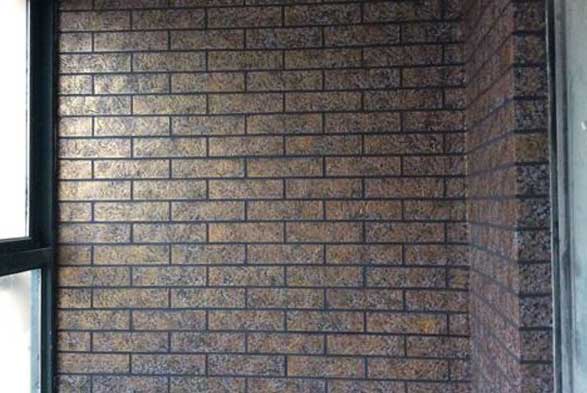

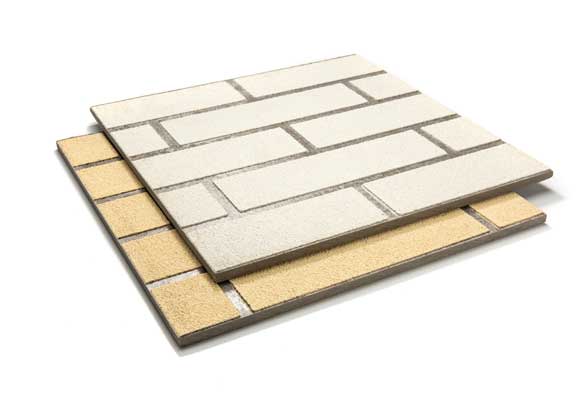

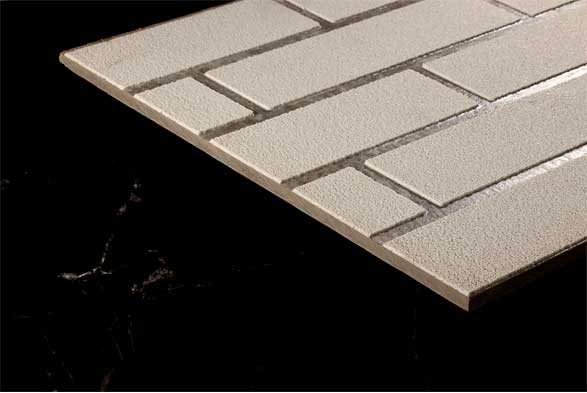

Brick grain or stone grain exterior wall board belongs to the really stone paint series product. Their structure includes high quality cement board substrate.
They are with the really stone paint material characteristic that hardness, durability and weather resistance. Its strong surface texture and vivid effect of brick and stone, gives people visual art space.
fiber cement board for exterior wall

Features

*Environmental protection: 100% non-asbestos, will not produce any toxic gases and radiation.
*Fire resistance: excellent flame retardant feature, and prevent the panels form bursting, peeling and cracking by fire.
*Waterproof and anti-corrosion: . owns good waterproof feature
*Resistant to insect and ant: hardening under 11Mpa steam curing, insect and ant can’t live in the board because of its structural characteristics .
*Heat and sound insulation: . Owns good heat insulation and sound insulation effect
*Light weight & high strength fiber cement products is kind of light weight and high: strength materials, owns durable good weather resistance performance .
*Easy working dry installation method, easy and fast : .
*Easy decoration: various decorative processing can be made on the board surface, such as coating materials or all kinds of adhesive

Installation

1. Wall horizontal vertical line positioning.
2.. Install the aluminum trim strip, put the structural adhesive on the back of sanle decoration panel( distance should be about 60cm) , install the vertical T-shape aluminum trim strip? then install the sanle decoration panel in sequence.
3. Install horizontal i-type aluminum trim strip, then install panel and vertical t-type aluminum trim strip.

Note:
for waterproof, structural glue is applied in the upward groove of horizontal aluminum trim strip, while structural glue is applied in the two sides of vertical t-type aluminum trim strip. Aluminum trim strip can be installed with self-tapping nails or air nails, spacing 30cm a nail.
4. Install the decoration board and aluminum trim strip in order from up and down or left and right sides, can not leave empty after filling in the middle, corner can use aluminous bag edge profile to close.
