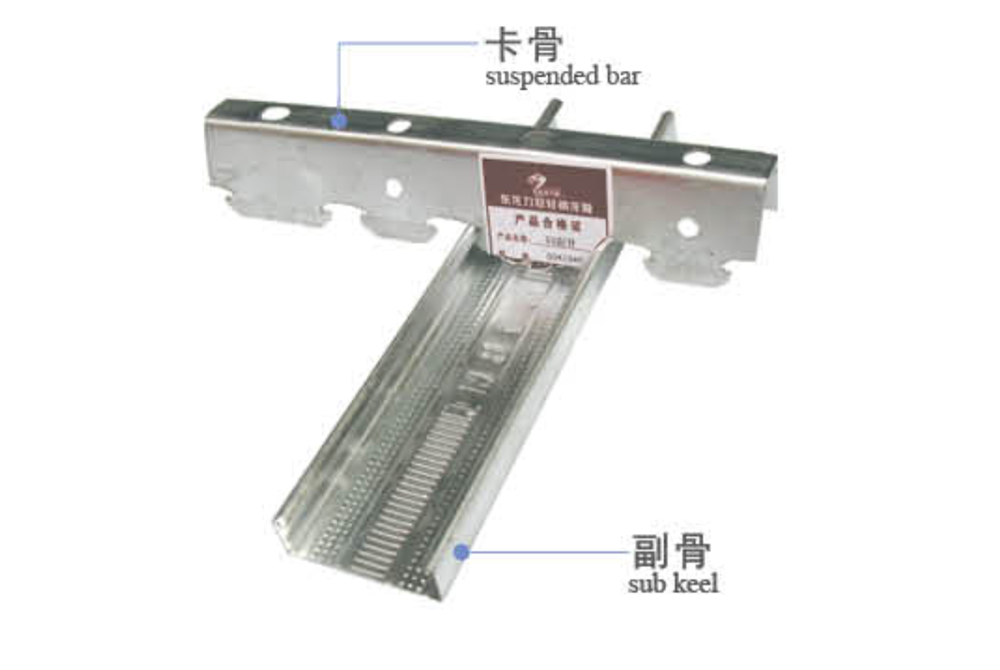

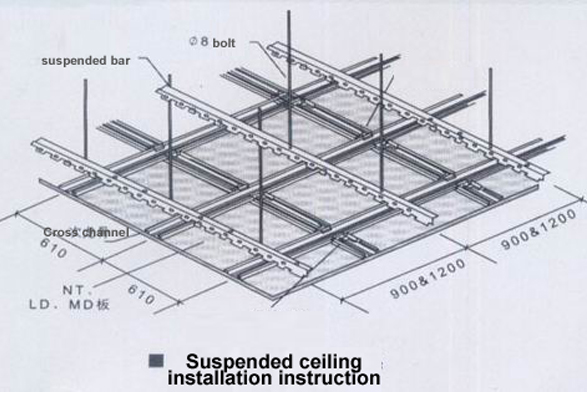

Galvanized Metal Steel Suspended Bar for Ceiling System

Size

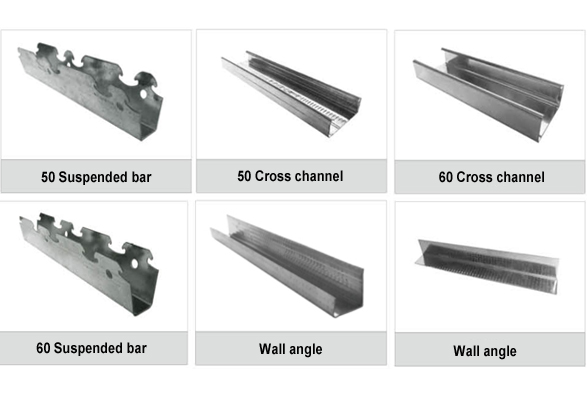

Suspended bar Width(mm)	Height(mm)	Cross Channel Width(mm)	Height(mm）	Length（mm）	Thickness（mm）
50/60	28/32/35/38	50/60	17/19/27	3000	0.4-1.2

Parameters

Both surface galvanization ≥100g/m²	Load Channel(Dimension A) ≤0.5mm
Load Channel(Dimension B) ≤1mm	Side flatness ≤1.5mm/1000mm
Underside flatness ≤1.5mm/1000mm	Angle difference ≤2°00′
Load Channel Remainder distortion limitation2.0mm

Brief Introduction

SANLE Group is one of the Chinese largest building materials company group, enjoys the well-known Sanle brand at home and abroad. Our group was established in 1998. We are a professional manufacturer engaging in the research, development, production, sale and service of fiber cement board, calcium silicate board, EPS cement panel, decorative cement panel and wood grain fiber cement siding panel. Our R&D team has senior R&D production experience. After years development, now we own 4 production bases in China, such as Beijing, Hebei, Foshan, Zhaoqing and Kunming.
Galvanized Metal Steel Suspended Bar for Ceiling System

Features

*Light weight, easy to install, easily removable and maerials can be recycled.
*Raw material is high quality hot dipped zinc galvanized steel , decided that the steel keel have good performance in fireproof and heat insulation, waterproof and anti-rust, anti-corrosive .
*Full range of products and customizable,Size adjustability can easier to match your request.
* Flexibility of application makes each ceiling tile/plasterboard easily installed and disconnected.
*The whole suspended ceiling system has the advantage of light-weight, high strength.
*High quality leads longer life span.
