Wood Grain Fiber Cement Siding Board



Size

Thickness(mm) Width(mm) Length(mm) Weight(kg/pcs)
8 200、1200 2440、3000 7

Parameters

Deviation in thickness: ±0.3mm Density Density: ≥1.2g/cm3
Bending strength(Cross): ≥ 10 MPa Bending strength(Vertical): ≥ 6 MPa
Thermal conductivity: ≤ 0.29W/(m.K) Water absorption: ≤ 40%
Water contain: ≤ 10% Moisture movement: ≤ 0.25%
Non-combustibility: GB8624 class A


Brief Introduction


Sanle wood grain fiber cement siding board is a kind of artificial fiber cement board. It makes your house classical and elegant and keeps the new appearance of your house perennially by its nice grail. There are four main patterns:Southern pine, Northern pine, Ashtree pattern and Oriental fir pattern.


Features

◆ Environment friendly
◆ Class A fireproof
◆ Water proof & moisture proof
◆ Economical and simple maintaining
◆ Insect-resistant ant
◆ High cycle life
◆ Small deformation coefficient

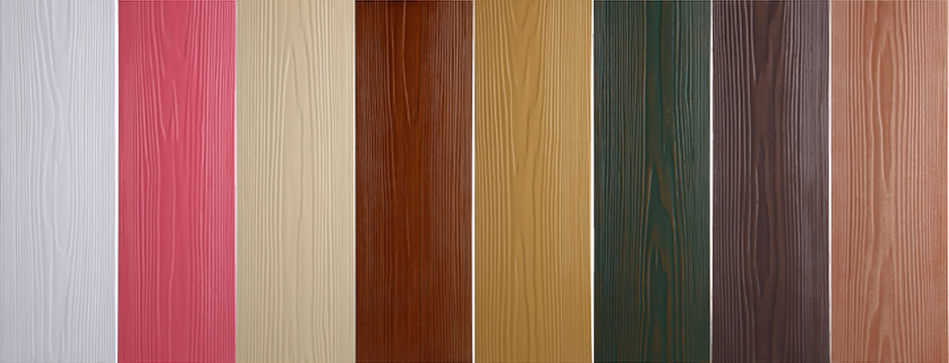

Color card

All colors can be customized.

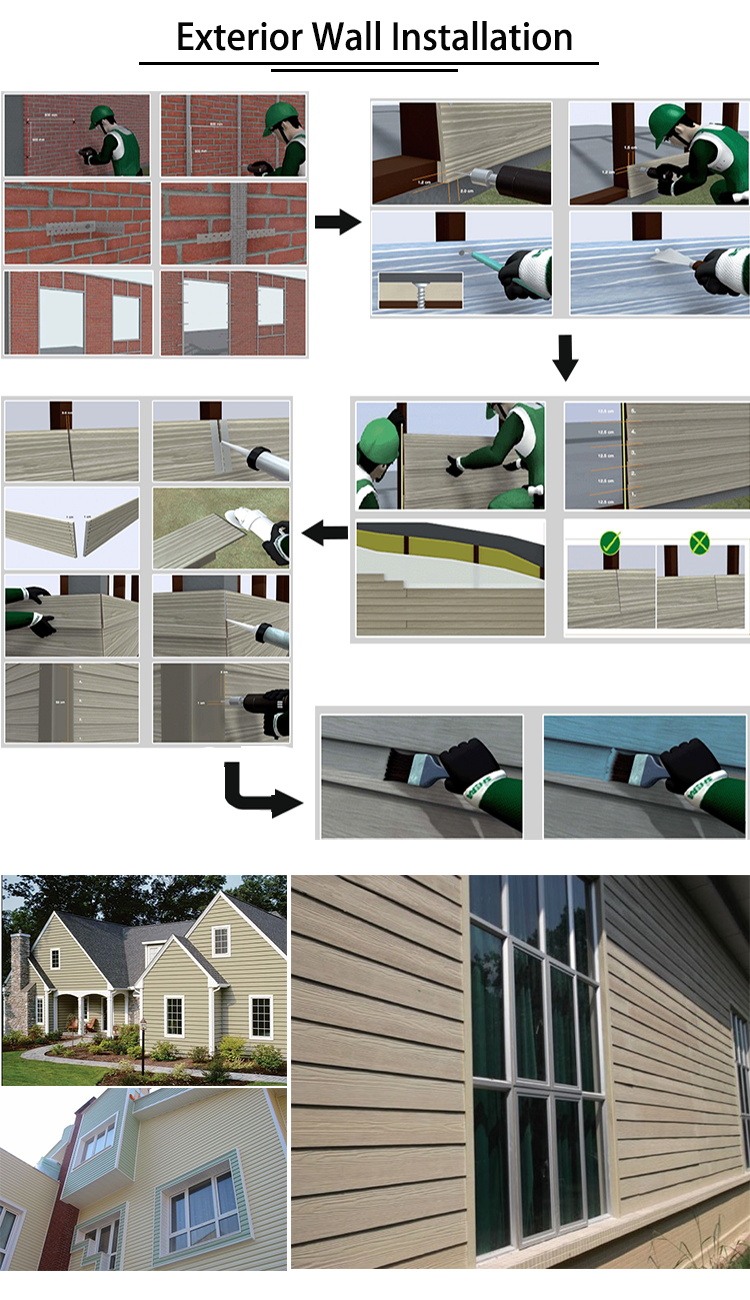

Process of installation

To check whether the wall is smooth or not and remove the obstacles from it. Find out the basic level, calculate and snap the line around the four sides on the basic of width of siding board.(The line means the horizontal spacing line)
To install the first board from the flashing of corner of wall, apply the fish penetrate fixed method.To drill the board every 50cm and at the same time drill the corresponding length hole on the exterior side.Fix and put the nylon anchor into the screw.The nail hole on the board should not less than 1.2cm , while 1.5cm is better.There are 2cm from two sides.
Use the same method to install the second siding board(the distance from up and down board is 2.5cm). Use the same way to install other kinds of siding board.
